Product Overview

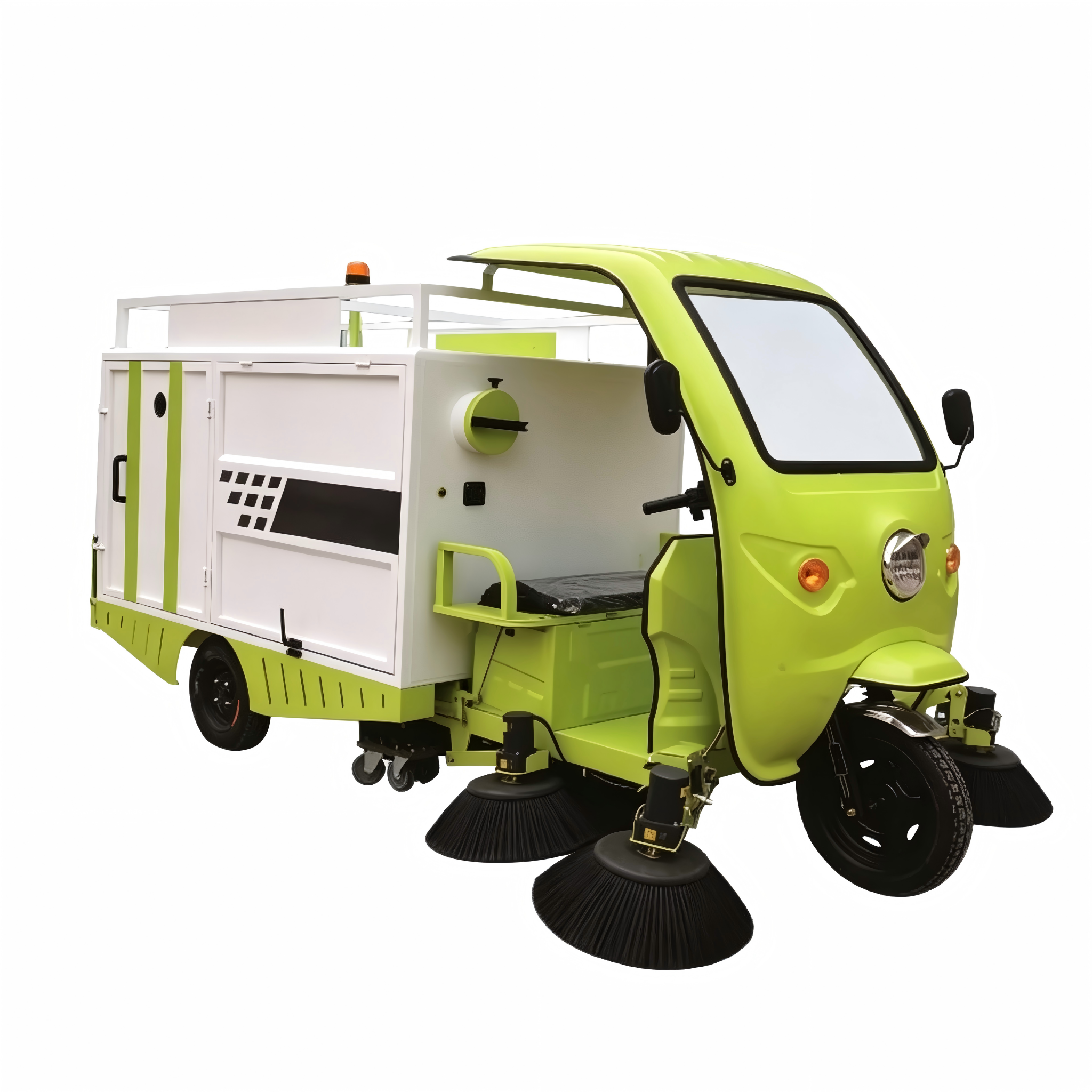

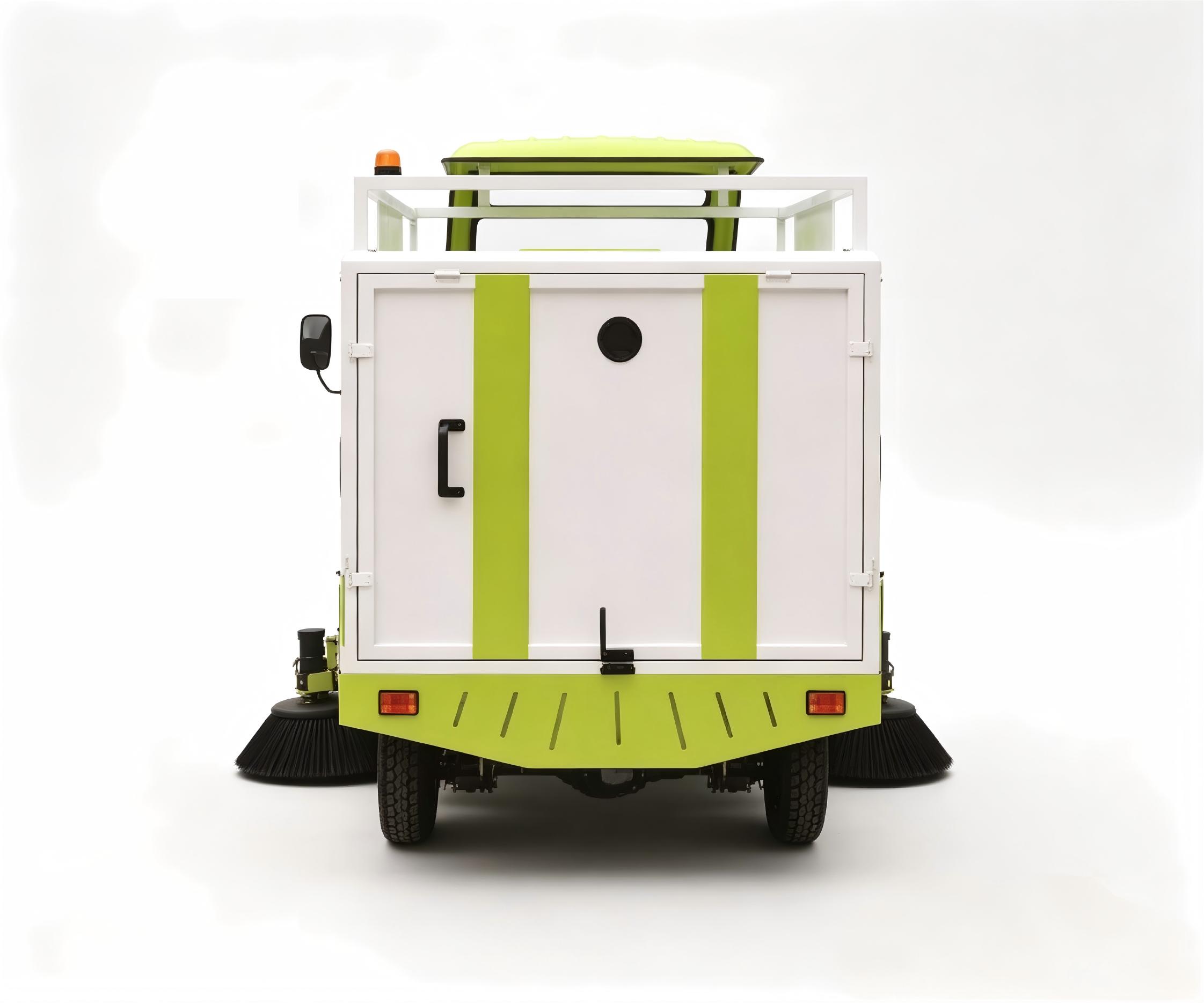

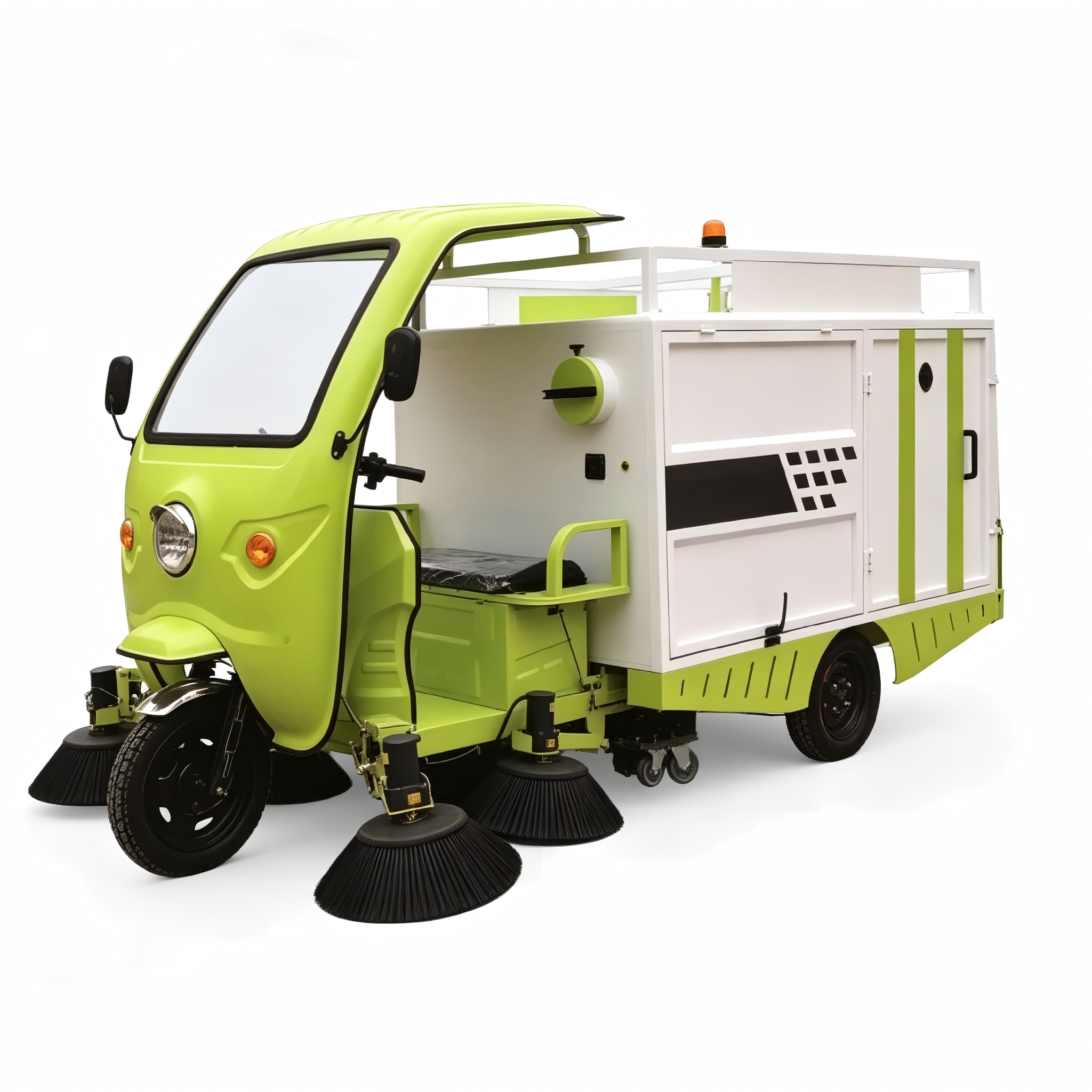

The LC1000 is a heavy-duty ride-on leaf collector and municipal sweeper built for large outdoor environments. With a 1900mm cleaning width, 800L trash bin, four side brushes, and a 60V/200Ah walking battery, it delivers up to 19,800 m²/h — making it the ideal solution for parks, campuses, roads, and large municipal green areas.
Technical Specification
| No. | Parameter Name | Value |
|---|---|---|
| 1 | Model | LC1000 |
| 2 | Overall Dimensions | 3900 × 1900 × 1800 mm (L×W×H) |
| 3 | Electric Control System | 6V / 1200W |
| 4 | Cleaning Width | 1900 mm |
| 5 | Trash Bin Capacity | 800 L |
| 6 | Water Tank Capacity | ≥100 L |
| 7 | Main Brush / Side Brush | 4 × 500 mm |
| 8 | Work Efficiency | 0–19,800 m²/h |
| 9 | Main Brush / Side Brush Motor | 4 × 200 Ah |
| 10 | Walking Battery | 60V / 200Ah |
Key Outstanding Features
- Massive 800L Trash Bin: Industry-leading collection capacity dramatically reduces the number of bin-emptying stops per shift, maximising productive sweeping time across large sites.
- Up to 19,800 m²/h Efficiency: Variable-speed drive enables the operator to adapt cleaning speed to site conditions — from careful detail sweeping to high-speed bulk collection.
- Four 500mm Side Brushes: Wide-sweep side brush configuration efficiently gathers leaves, litter, and debris from road edges, kerbs, and ground-level obstacles into the main collection path.
- 60V / 200Ah Walking Battery: High-capacity traction battery delivers sustained power for extended all-day operation without frequent recharging interruptions.

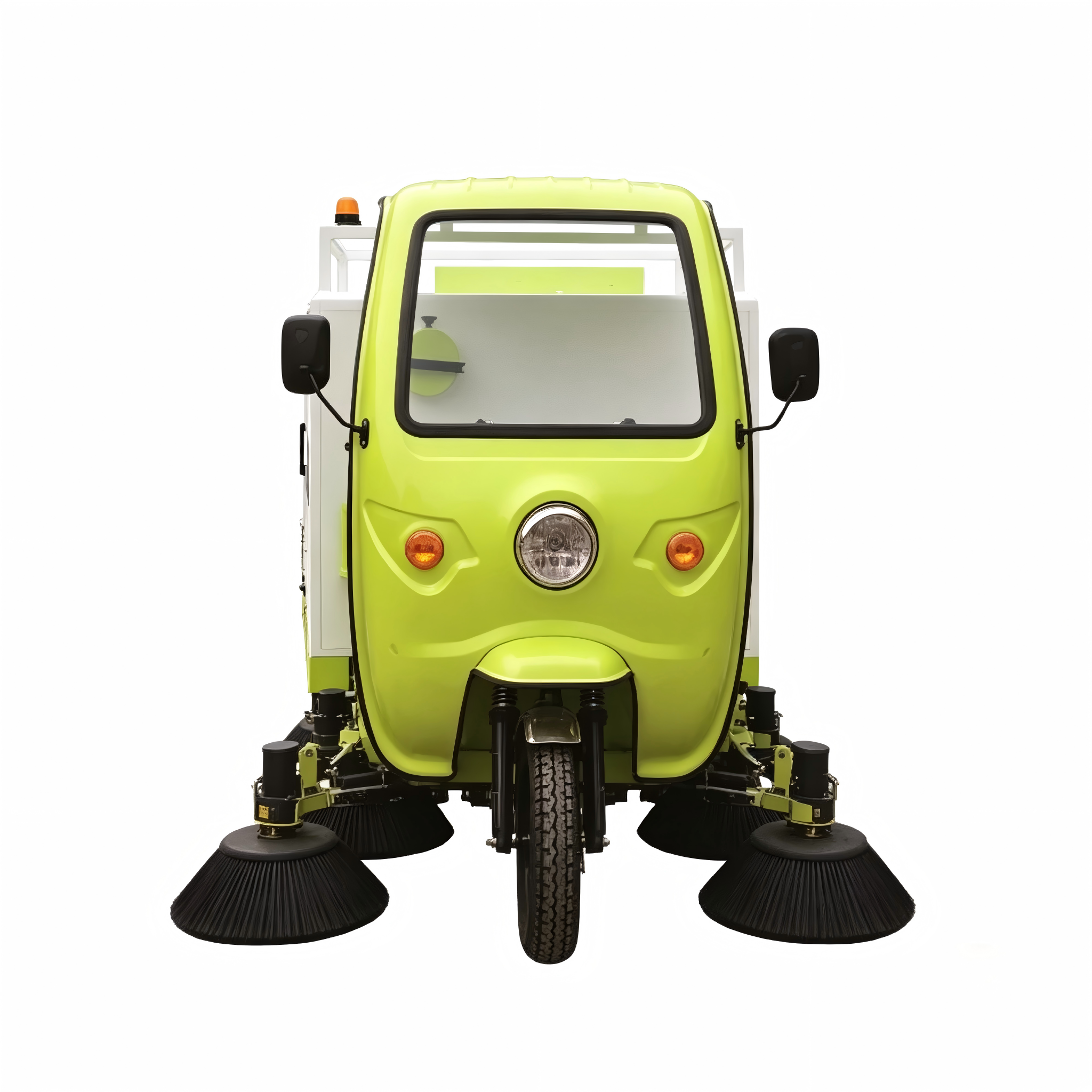

- Three-Wheel Ride-On Design: Single front steering wheel with dual rear load wheels provides excellent manoeuvrability in parks, streets, and garden paths.
- Safety & Visibility Package: Orange warning beacon, rear-view mirrors, and a simple enclosed driver’s seat provide operator comfort and on-road visibility for municipal environments.
Application Scenarios
- Municipal roads, boulevard lanes, and city streets
- University campuses, large parks, and botanical gardens
- Industrial estates, logistics parks, and factory perimeters
- Airport perimeter roads and airfield surrounds
- Resort properties, golf courses, and scenic green area
