Product Overview

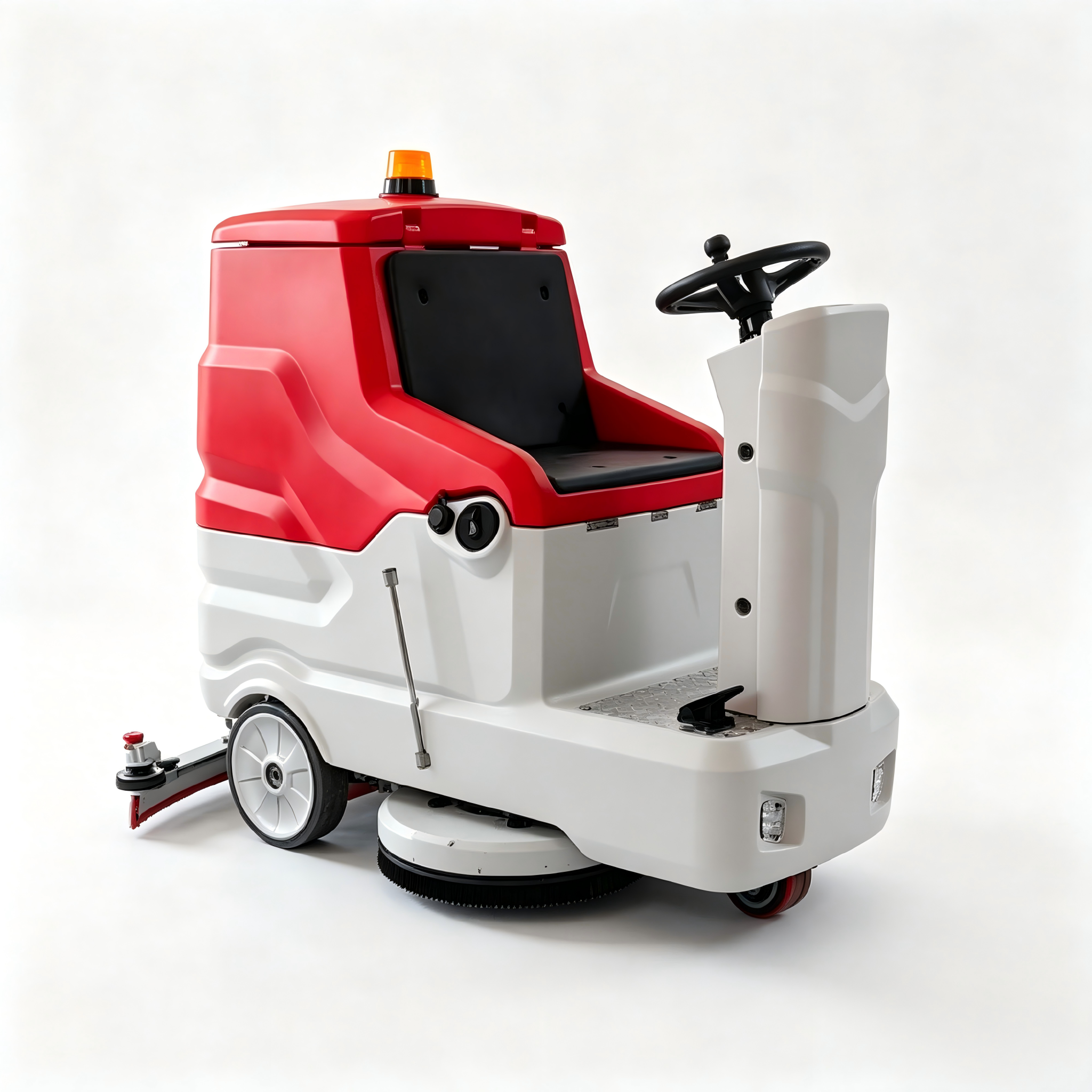

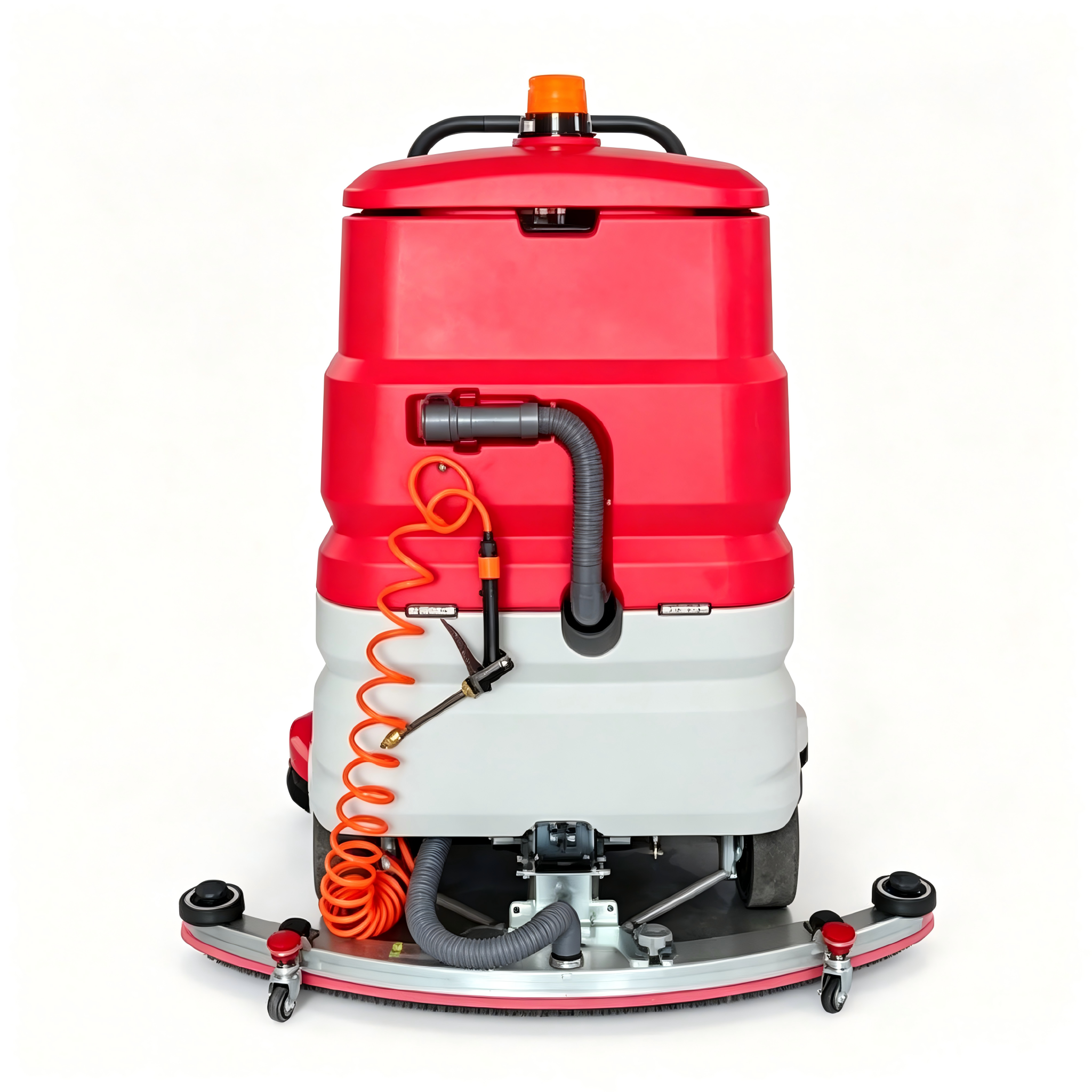

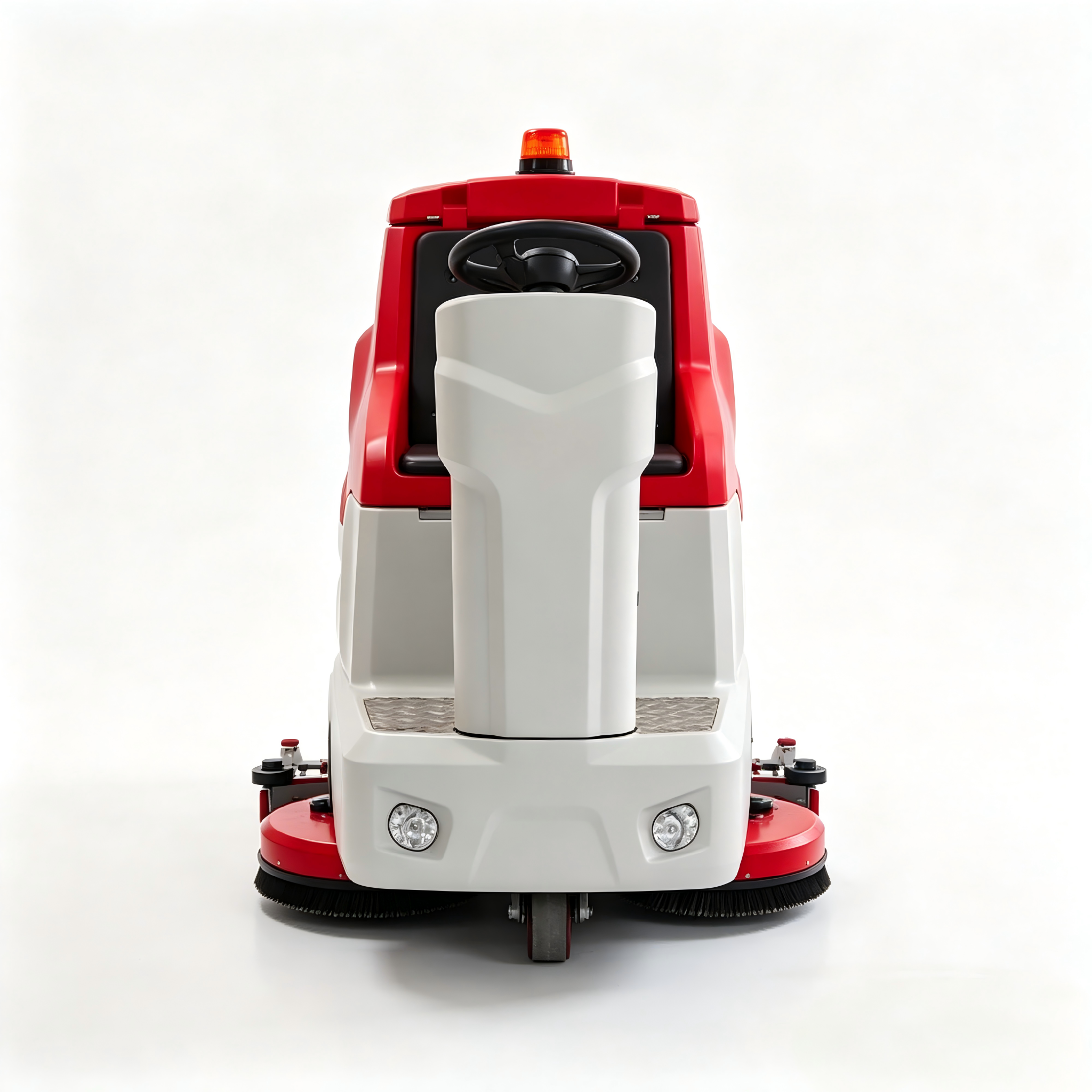

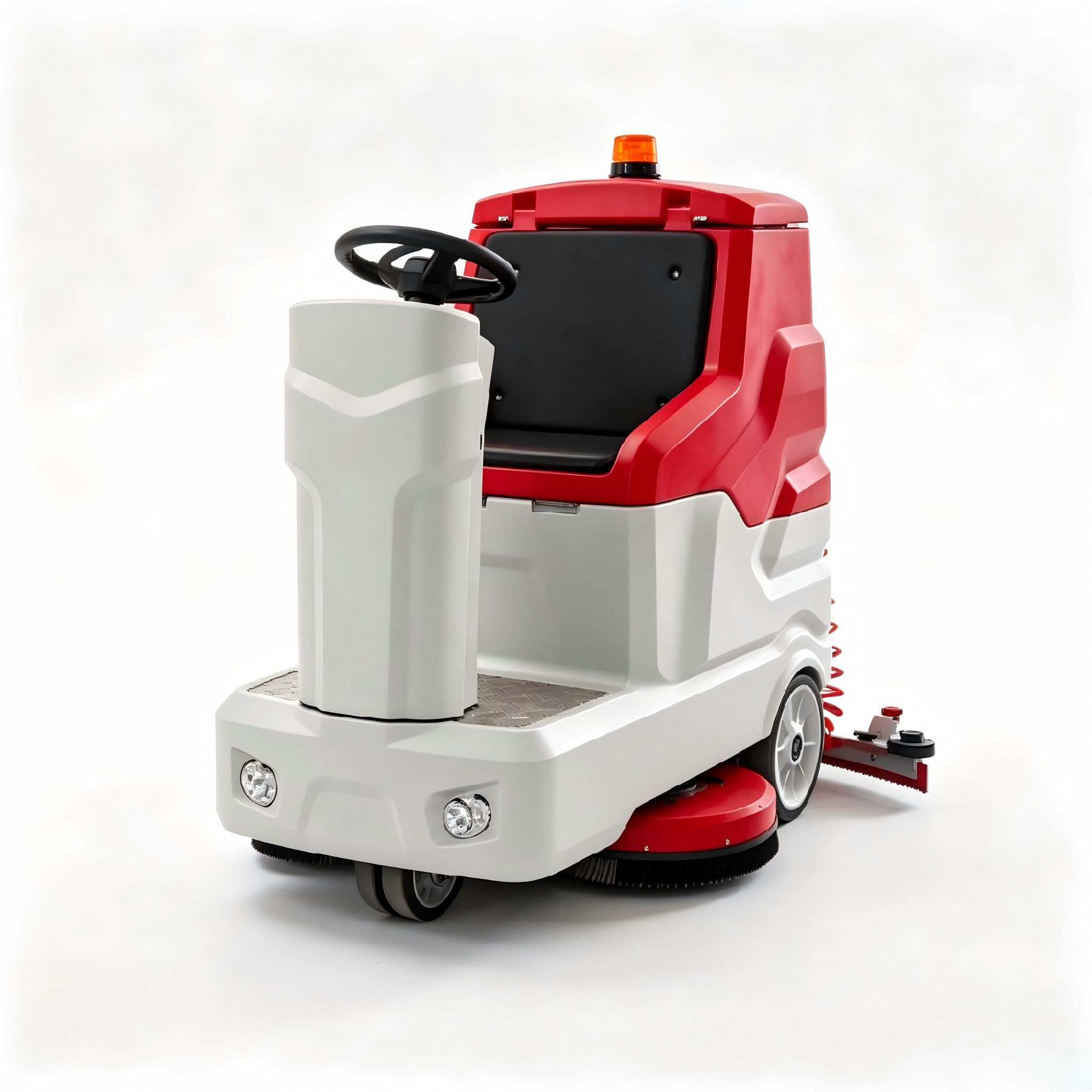

The BH-1020 is a heavy-duty ride-on floor scrubber engineered for large-scale industrial and commercial cleaning. Equipped with twin 550 W disc motors and a 1020 mm cleaning width, it covers up to 8,000 m² per hour in a single operator pass. The 24V/200Ah battery delivers 4–5 hours of continuous operation, while the 180 L clean and 200 L dirty water tanks ensure extended autonomous runtime. Electric disc-lift and squeegee-lift systems make obstacle navigation effortless, and a top speed of 10 km/h keeps productivity high across warehouses, logistics centres, factories, and large retail floors.
Technical Specification
| No. | Parameter | Value |
|---|---|---|
| 1 | Model | BH-1020 |
| 2 | Overall Dimensions | 1700 × 1220 × 1450 mm |
| 3 | Cleaning Width | 1020 mm |
| 4 | Max Efficiency | 8,000 m²/h |
| 5 | Battery | 24V / 200Ah |
| 6 | Clean Water Tank | 180 L |
| 7 | Dirty Water Tank | 200 L |
| 8 | Drive Motor | 1000 W |
| 9 | Disc Motor | 550 W × 2 |
| 10 | Vacuum Motor | 500 W |
| 11 | Squeegee Width | 1220 mm |
| 12 | Travel Speed | 0–10 km/h |
| 13 | Runtime | 4–5 H |
| 14 | Disc Lift | Electric |
| 15 | Squeegee Lift | Electric |
| 16 | Machine Weight | 490 kg |
Key Outstanding Features
- 1020 mm Dual-Disc Cleaning Width: Twin 550 W disc motors provide thorough scrubbing across a wide 1020 mm path, cutting cleaning time by up to 40% compared to single-disc walk-behind models.
- 8,000 m²/h Max Efficiency: Ride-on operation at up to 10 km/h allows a single operator to maintain large industrial floors efficiently across an entire shift.
- 24V / 200Ah Large-Capacity Battery: Delivers 4–5 hours of uninterrupted heavy-duty scrubbing on a single charge, covering full-shift operations without mid-shift downtime.
- 180L Clean + 200L Dirty Water Tanks: Oversized tank pair minimises refill and dump stops, maximising continuous floor contact time per shift.
- Electric Disc & Squeegee Lift: One-button electric lift for both the scrubbing disc and rear squeegee assembly makes navigating doorways, ramps, and obstacles fast and damage-free.
- 1220 mm Wide Squeegee: The broad rear squeegee recovers dirty water efficiently across the full cleaning path, leaving floors dry and safe for foot traffic immediately after each pass.
Application Scenarios
- Large warehouses and logistics distribution centres
- Manufacturing plants and automotive workshops
- Supermarkets, shopping malls, and hypermarkets
- Airports, train stations, and large public facilities
- Hospitals, exhibition halls, and convention centres
