Product Overview

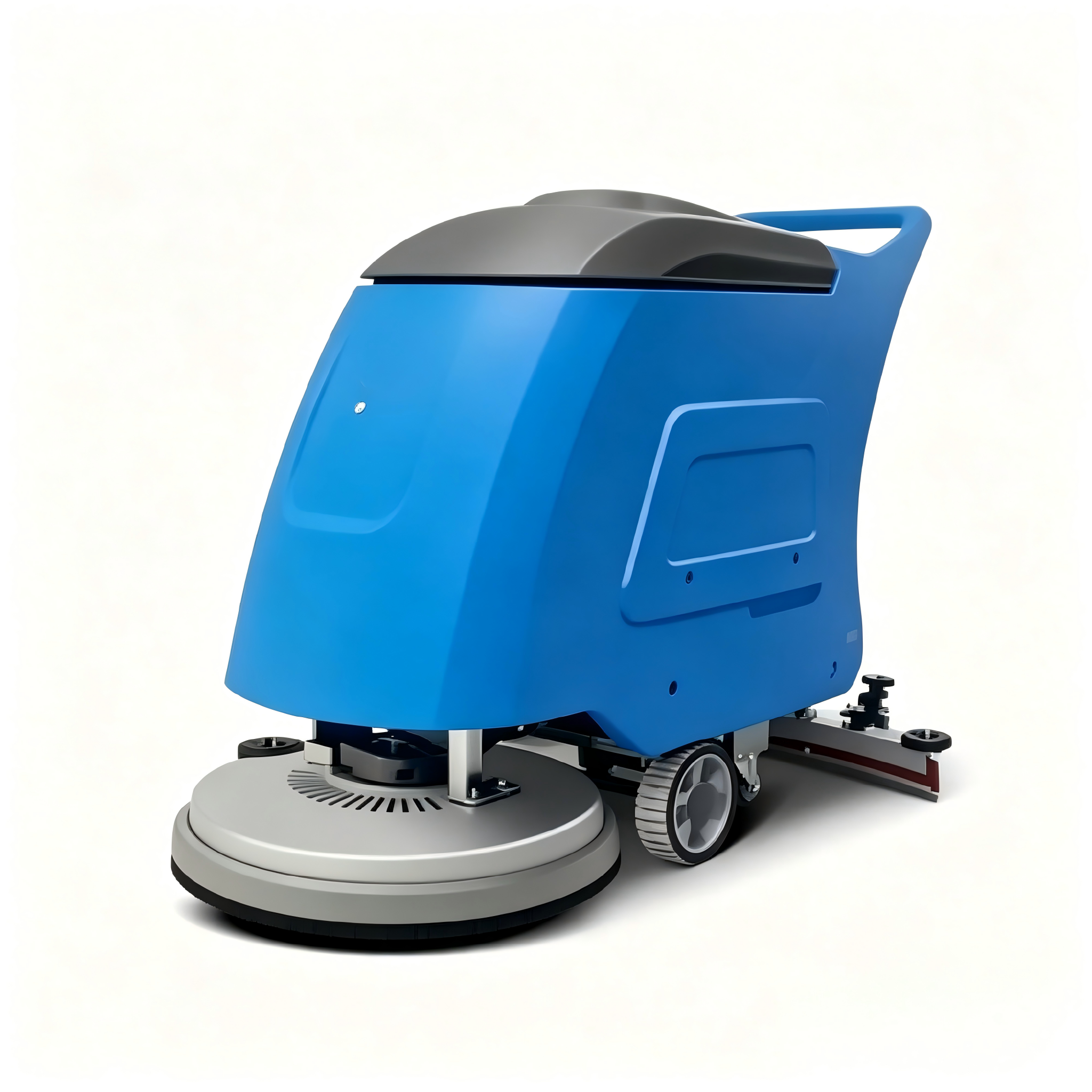

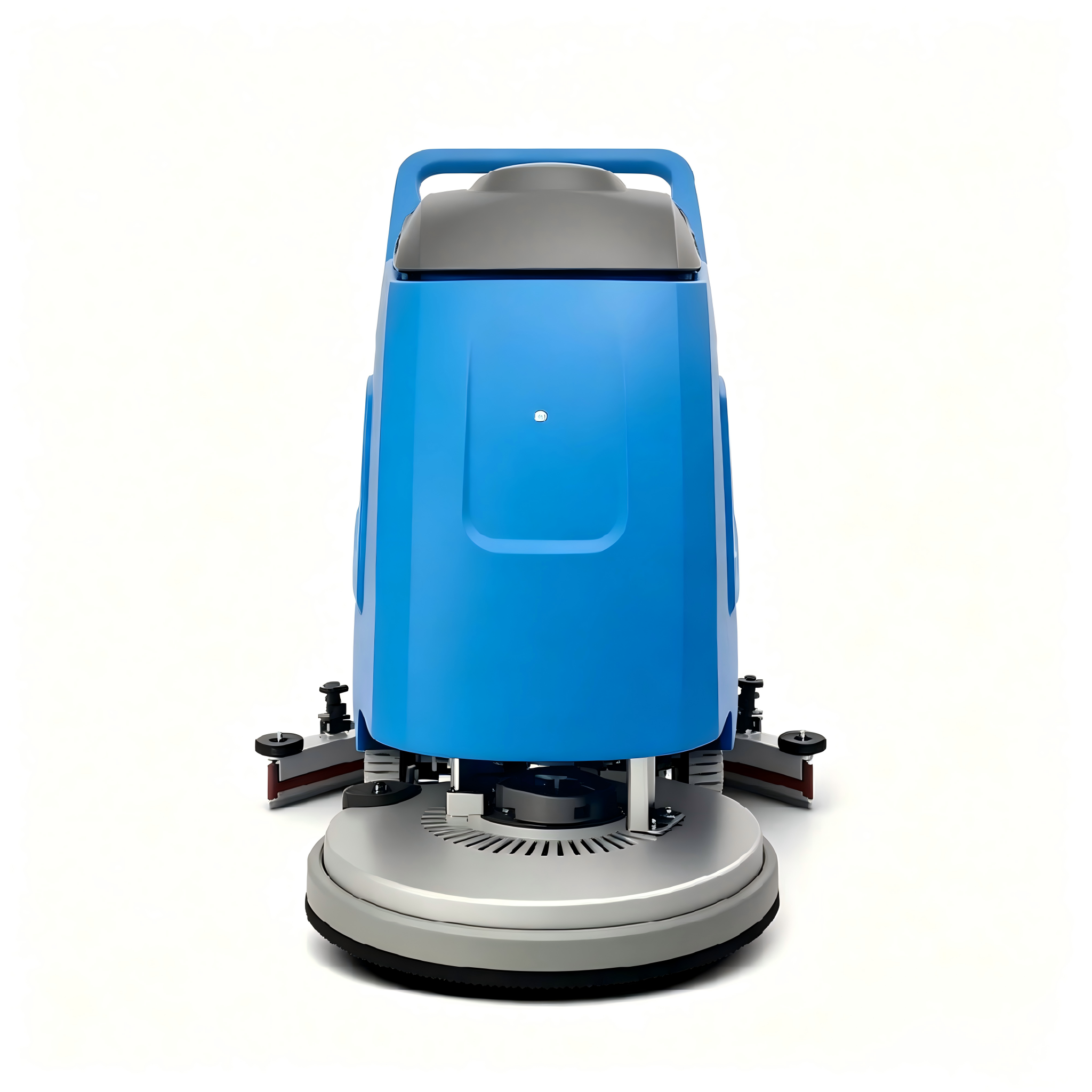

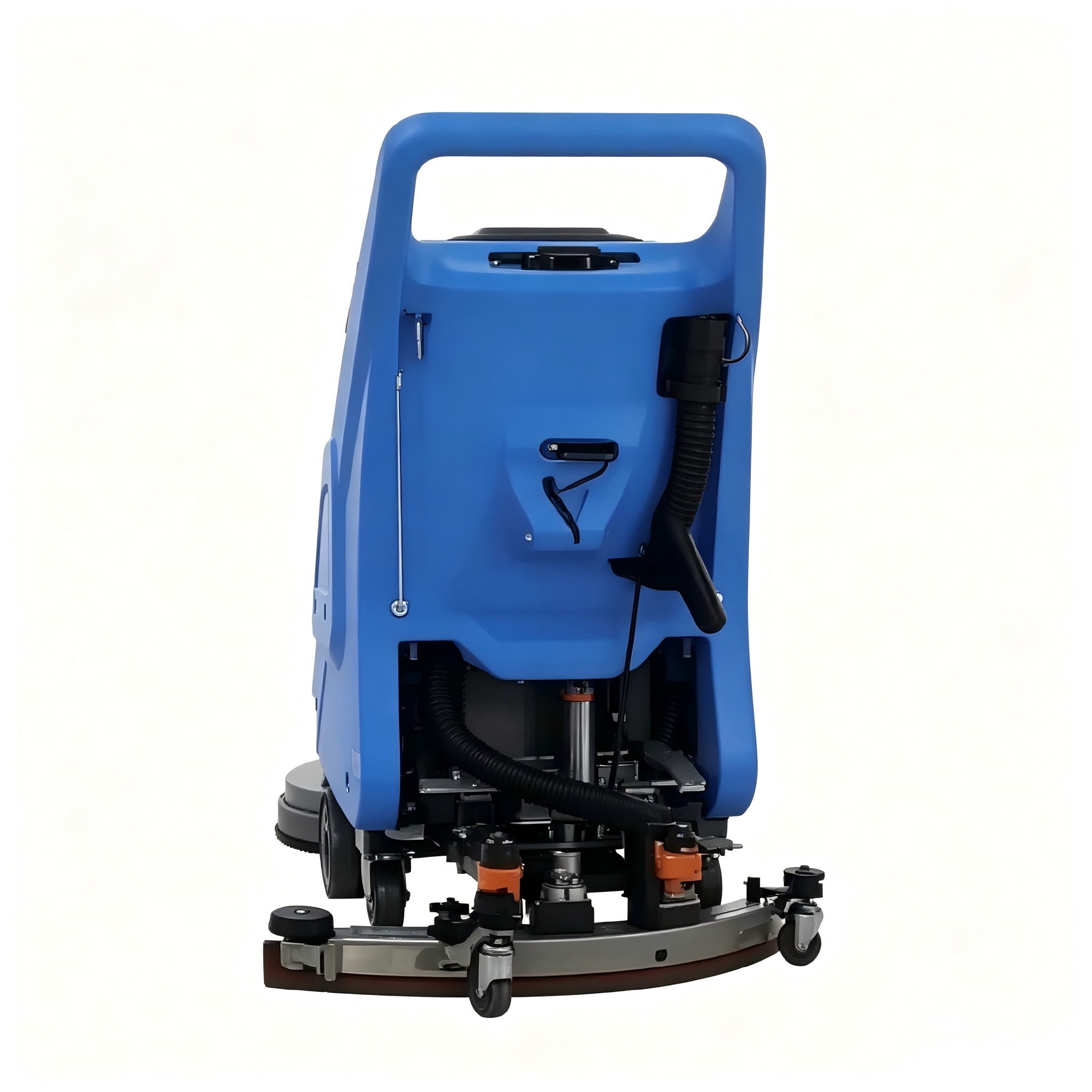

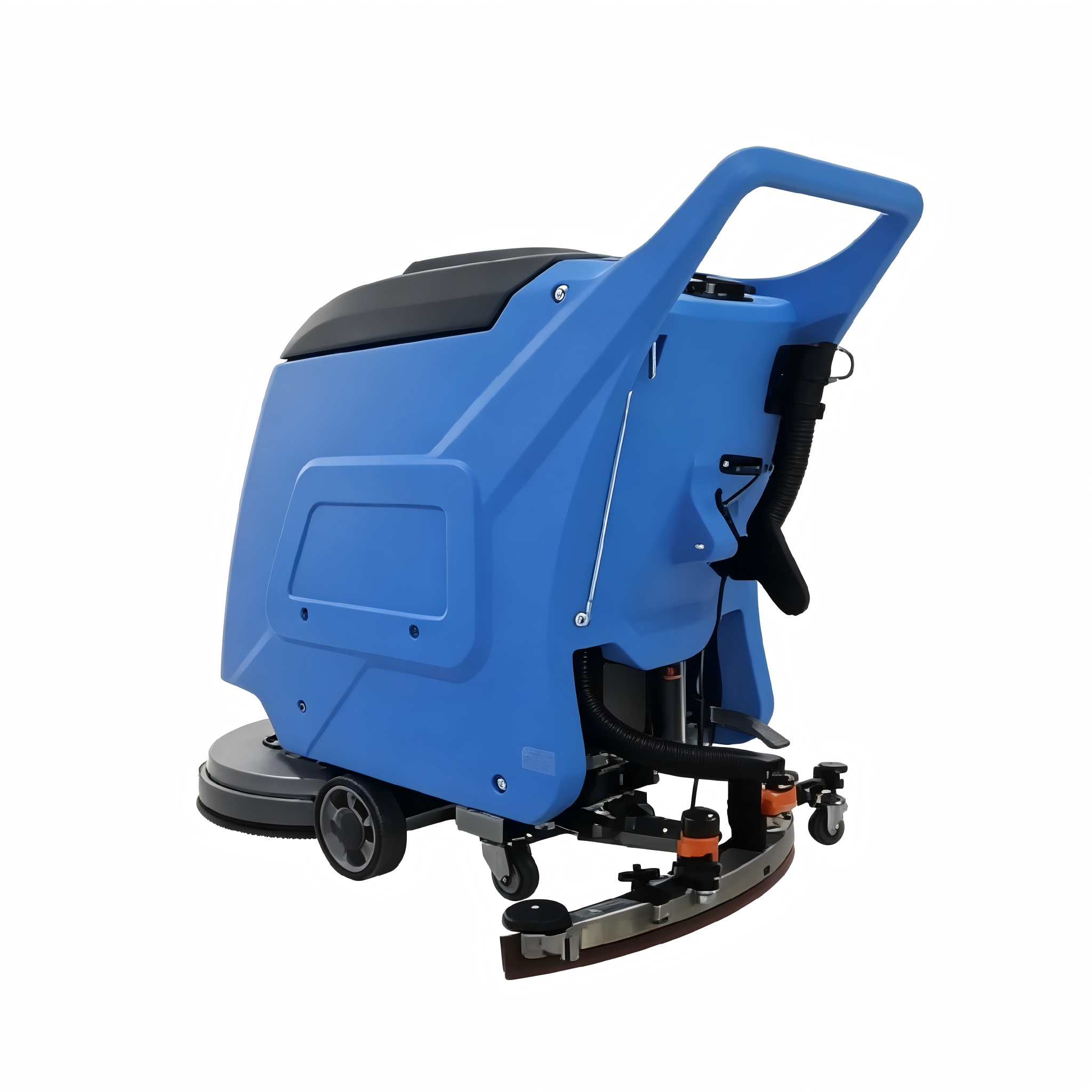

The DJ520M Walk-Behind Floor Scrubber is engineered for medium-sized commercial environments where productivity and ease of maintenance are equally important. Its integrated water tank design — with separate 55 L clean and 60 L dirty water compartments — simplifies filling, monitoring, and emptying, while the aluminium alloy squeegee assembly ensures long-term durability and consistent water recovery. A built-in motor controller protects the scrubbing and vacuum motors from overload, extending operational life significantly.
Technical Specification
| No. | Parameter | Value |
|---|---|---|
| 1 | Model | DJ520M |
| 2 | Battery | 24V / 100Ah × 2 (Lithium Option Available) |
| 3 | Disc Motor Power | 550 W |
| 4 | Vacuum Motor Power | 500 W |
| 5 | Clean Water Tank | 55 L |
| 6 | Dirty Water Tank | 60 L |
| 7 | Disc Diameter | 530 mm |
| 8 | Squeegee Width | 830 mm |
| 9 | Cleaning Efficiency | 2500 m²/h |
| 10 | Working Time | 3 Hours |
| 11 | Machine Weight | 160 kg |
| 12 | Dimensions (L×W×H) | 1260 × 800 × 970 mm |
| 13 | Brush Type | Single Disc |
Key Features
- Integrated Tank Design: Separate 55/60 L clean and dirty water tanks in a single compact body — easy to fill, monitor, and empty with no external hoses.
- Aluminium Alloy Squeegee: One-piece die-cast aluminium squeegee assembly for superior rigidity, water seal, and long service life.
- Motor Controller Protection: Built-in controller monitors and protects both disc and vacuum motors from overload and overheating.
- 830 mm Wide Squeegee: Wide recovery path reduces the number of passes required per shift, increasing total area coverage.
- Lithium Battery Option: Standard lead-acid battery can be factory-upgraded to lithium for faster charging and longer daily runtime.
Application Scenarios
- Shopping malls and department stores
- Logistics warehouses and distribution centres
- Factory floors and light industrial facilities
- University and college buildings
- Airport terminals and transport hubs
- Large hotel lobbies and conference centres
