Product Overview

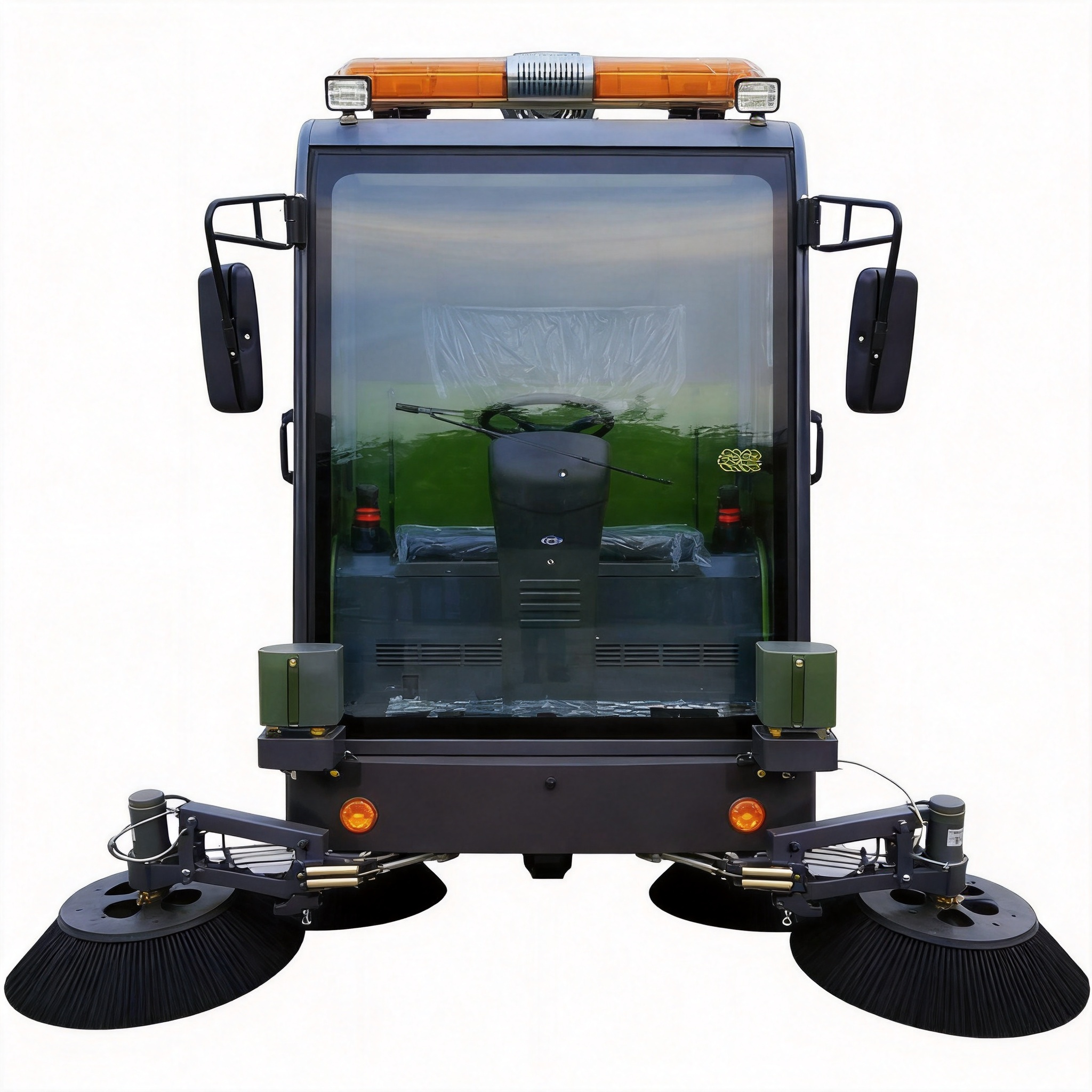

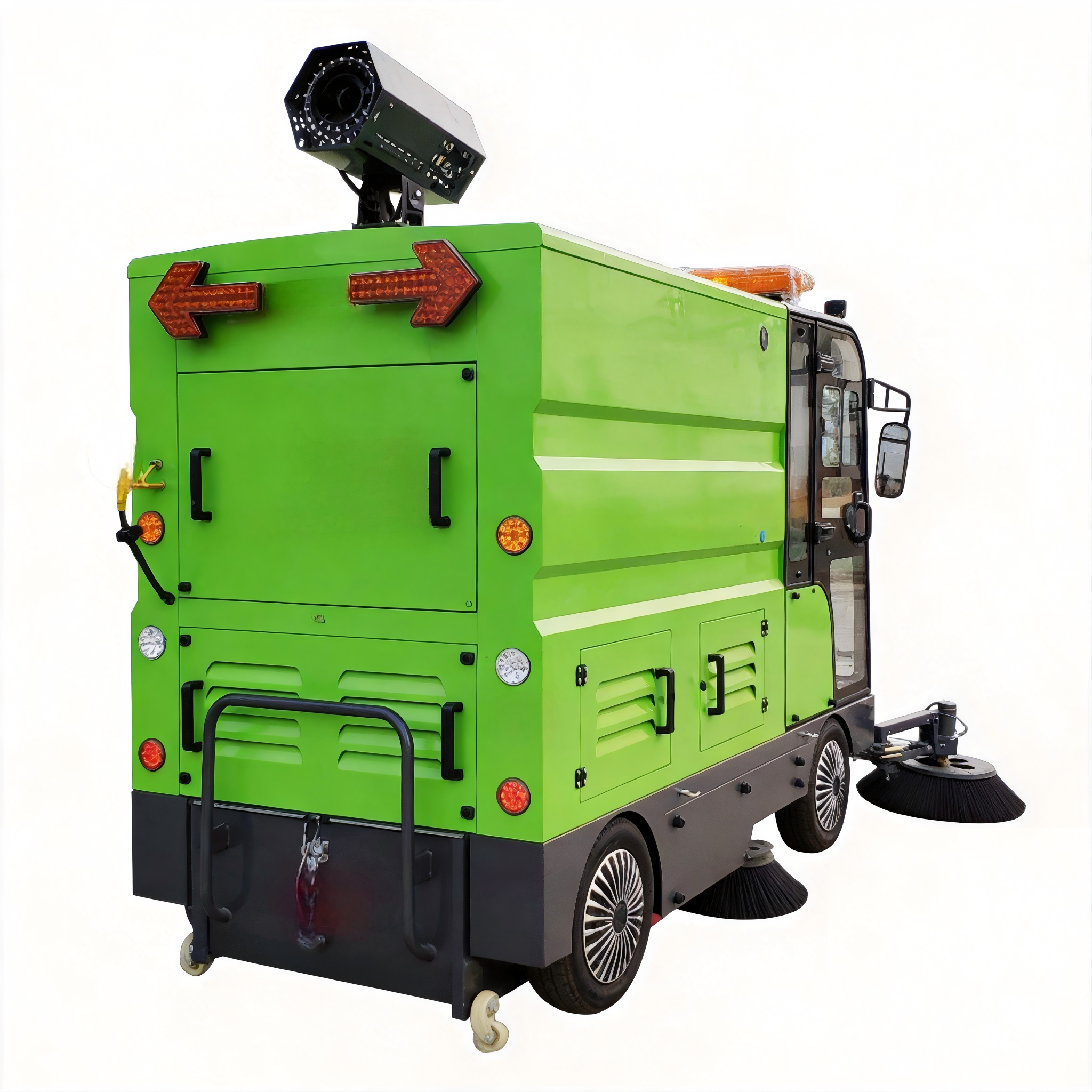

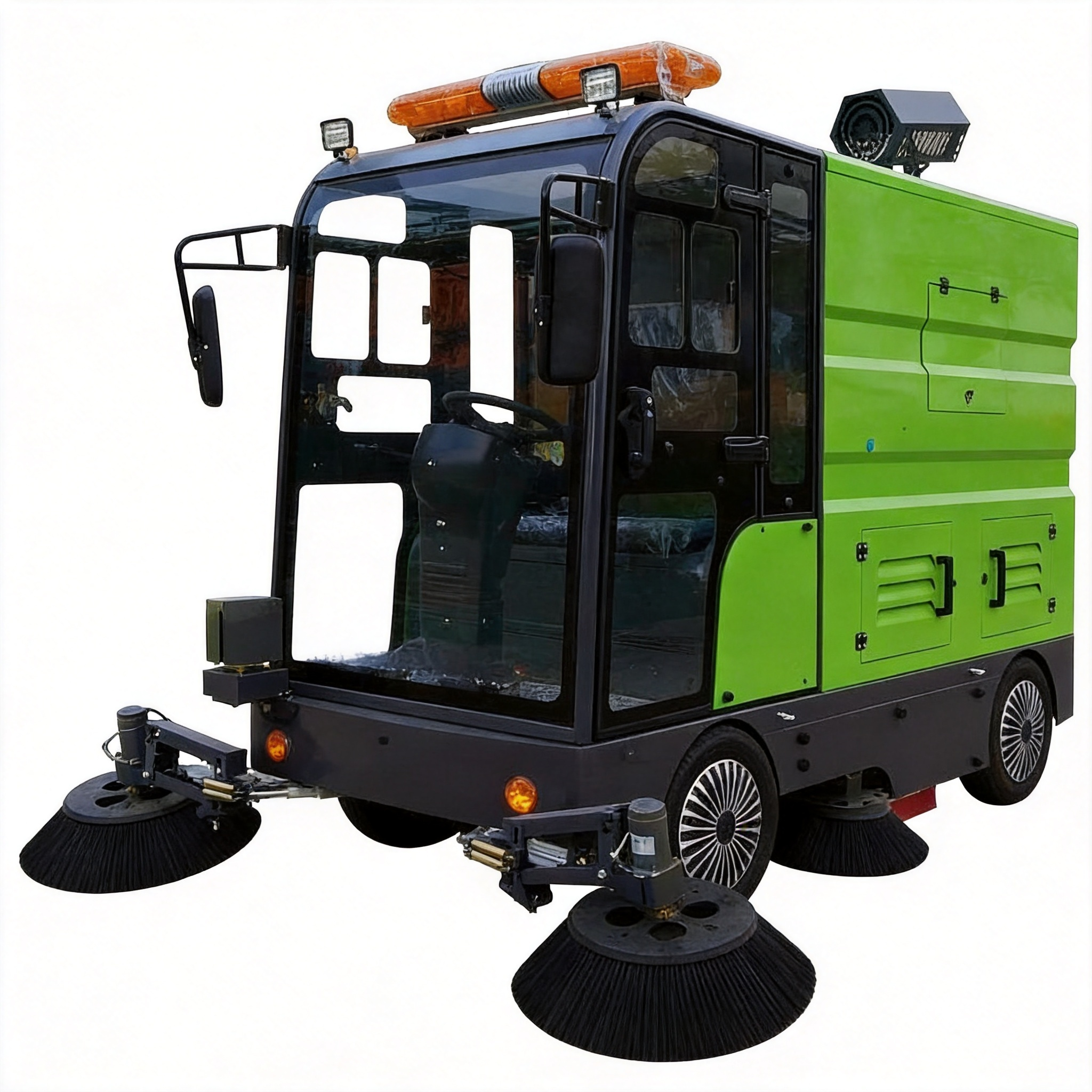

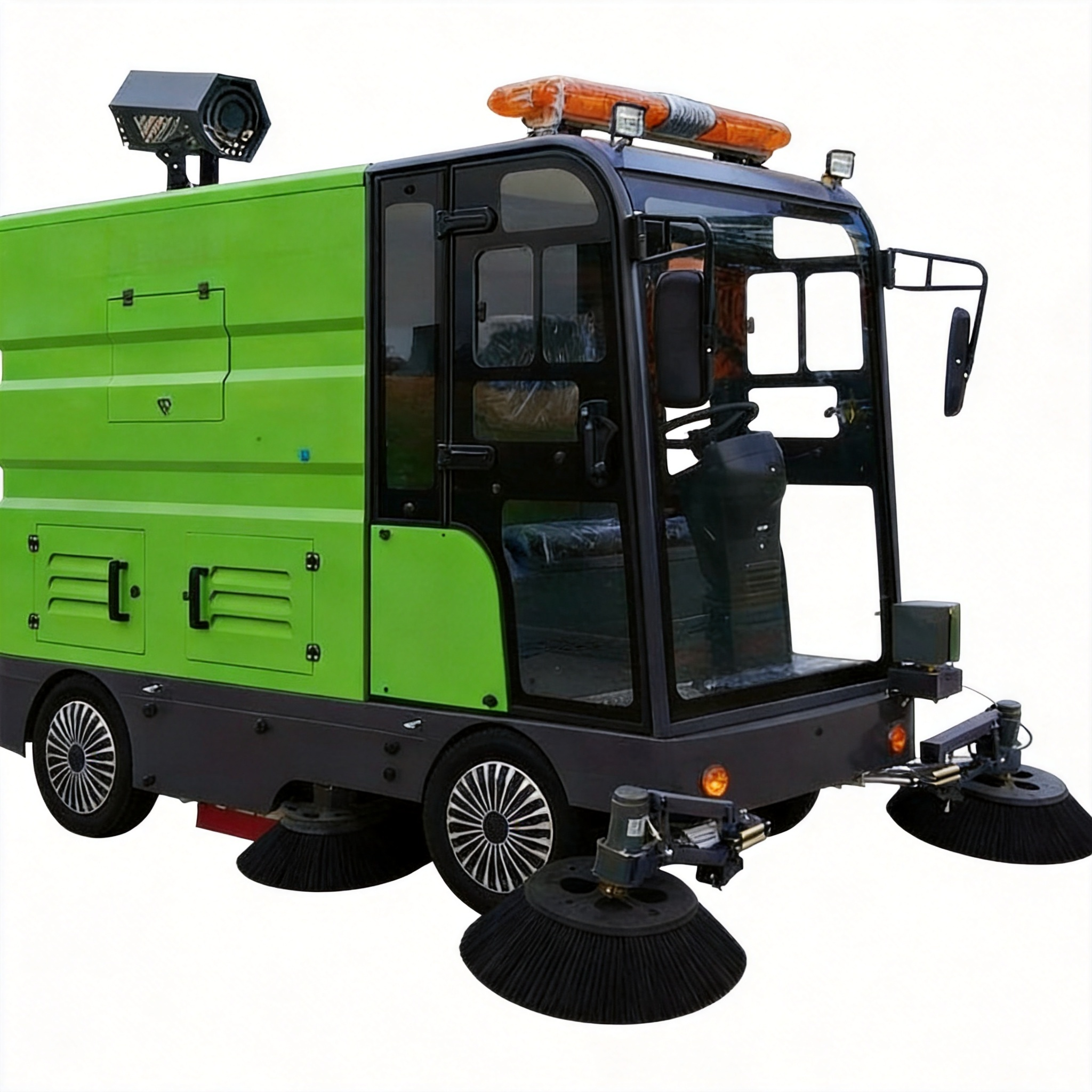

The DG2500 Multi-Functional Electric Road Sweeper redefines operational flexibility in large-scale outdoor cleaning. Its continuously adjustable sweeping width — from 1500 mm for narrow alleys up to 2500 mm for wide arterial roads — means a single machine can serve the full spectrum of municipal cleaning routes without any hardware change. The headline innovation is its remote-controlled omni-directional oscillating wash system, which allows the operator to precisely direct the water jet up, down, left, and right without leaving the cab — an industry first for targeted kerb, drain, and corner washing. Paired with a massive 48V / 300Ah lithium power source, a 6 m fog cannon, a 10 m high-pressure water reel, and a 7.2-inch HD reversing camera, the DG2500 delivers an all-in-one municipal cleaning solution with unmatched adaptability.
Technical Specification
| No. | Parameter Name | Value |
|---|---|---|
| 1 | Model | DG2500 |
| 2 | Overall Dimensions | 3700 × 2500 × 2150 mm |
| 3 | Drive Power | 3000 W (Hill-Hold Function) |
| 4 | Battery Type & Spec | 48V / 300Ah Lithium Battery |
| 5 | Sweeping Width | ≤2500 mm (Adjustable from 1500 mm) |
| 6 | Continuous Running Time | 5 – 7 Hours |
| 7 | Gradeability | ≤20% |
| 8 | Max Travel Speed | ≤20 km/h |
| 9 | Omni-Directional Wash System | Remote-Controlled Oscillating Wash |
| 10 | Brush Configuration | Main Brush 790mm × 1 + Side Brush 500mm × 4 |
| 11 | Motor Configuration | Main Brush 1200W × 2 + Fan 500W × 4 + Side Brush 100W / 150W × 2 + Dust Shaker 100W × 4 |
| 12 | High-Pressure Pump Power | 1500 W |
| 13 | Working Flow Rate | ≤8 L/min |
| 14 | Working Pressure | ≤13 kPa |
| 15 | High-Pressure Water Reel | 10 m Retractable Reel |
| 16 | Fog Cannon Range | ≤6 m |
| 17 | Charging System | All-Aluminium Intelligent Smart Charger |
| 18 | Reversing Camera System | 7.2-inch HD Screen + HD Camera |
| 19 | Tyre Specification | 145/70R12 |
| 20 | Body Material | Electrophoresis Metal Frame with Spray Coating |
| 21 | Brake System | Hydraulic Double Disc Brake |
| 22 | Steering System | Ride-On Steering Wheel |
| 23 | Operation Mode | One-Key Auto Start |
| 24 | Warning Light | 12V Integrated Warning Light |
| 25 | Electrical Control | Imported Intelligent Self-Diagnostic System |
| 26 | Vehicle Weight | 1250 kg |
Key Outstanding Features
- Adjustable 1500–2500 mm Sweeping Width: The only sweeper in our lineup with a fully adjustable deck — narrows to 1500 mm for tight alleyways and back streets, expands to 2500 mm for wide arterial roads and open plazas, all without any hardware change.
- Remote-Controlled Omni-Directional Oscillating Wash: Industry-exclusive feature — the operator controls the wash nozzle direction (up/down/left/right) remotely from the cab, enabling precise targeted cleaning of kerb edges, drain channels, tree pits, and road furniture without stopping or dismounting the vehicle.
- 48V / 300Ah Lithium Battery (5–7 Hours Runtime): Among the longest runtime in its class — a full working day without any recharge stop, enabling continuous operation across extended municipal routes.
- 3000W Hill-Hold Drive System: Anti-rollback hill-hold prevents the machine from rolling on gradients, ensuring safe operation and parking on urban hills and ramp access roads up to 20% gradient.
- 7.2-Inch HD Reversing Camera: Full HD reversing display for safe manoeuvring in congested urban streets, pedestrian zones, and loading areas.
- 6 m Fog Cannon Dust Suppression: Forward-mounted fog cannon clears airborne particulates ahead of all brush contacts, providing a dust-free sweeping corridor for operator and public health.
- 10 m High-Pressure Water Reel (1500W): Built-in high-pressure system for targeted spot-washing without vehicle repositioning.
- Imported Self-Diagnostic ECU: Real-time fault detection across all electrical circuits prevents unplanned breakdowns and maximises fleet uptime.
Application Scenarios
- Municipal arterial roads and narrow residential back streets (adjustable width covers both)
- Industrial parks, logistics hubs, and container port yards
- Municipal parks, scenic tourist areas, and heritage zones
- Urban squares, commercial pedestrian streets, and event venues
- High-speed rail stations and airport landside cleaning
- University campuses, hospital complexes, and government facilities
- Solar photovoltaic farm access roads and perimeter tracks
