Product Overview
The ZCB2500 Back-Bucket Ride-On Road Sweeper is a purpose-built municipal solution that fundamentally changes how large-area sweeping operations are conducted. Unlike conventional sweepers that dump collected debris on-site, the ZCB2500 features an integrated 240 L standard-specification back-mounted waste bucket that retains all collected material for off-site disposal — making it the ideal choice for urban residential streets, scenic areas, and environments where on-site debris dumping is prohibited. Powered by a massive 48V / 300Ah lithium battery pack, equipped with a 500 L water tank for all-day spray suppression, a 6 m fog cannon, a 10 m high-pressure water reel, and a 7.2-inch HD reversing camera, the ZCB2500 is the most fully-featured back-bucket sweeper in our product line.
Technical Specification
| No. | Parameter Name | Value |
|---|---|---|
| 1 | Model | ZCB2500 |
| 2 | Overall Dimensions | 4150 × 2450 × 2400 mm |
| 3 | Drive Power | 3000 W (Hill-Hold Function) |
| 4 | Battery Type & Spec | 48V / 300Ah Lithium Battery |
| 5 | Sweeping Width | ≤2450 mm |
| 6 | Continuous Running Time | 4 – 6 Hours |
| 7 | Gradeability | ≤20% |
| 8 | Max Travel Speed | ≤20 km/h |
| 9 | Water Tank Capacity | 500 L |
| 10 | Hopper / Back Bucket Capacity | 240 L (Standard Waste Bucket) |
| 11 | Brush Configuration | Main Brush 800mm × 1 + Front Side Brush 650mm × 2 + Rear Side Brush 500mm × 2 |
| 12 | Motor Configuration | Main Brush 1200W × 2 + Fan 500W × 2 + Side Brush 100W / 150W × 2 + Dust Shaker 100W × 2 |
| 13 | High-Pressure Pump Power | 1500 W |
| 14 | Working Flow Rate | ≤8 L/min |
| 15 | Working Pressure | ≤13 kPa |
| 16 | High-Pressure Water Reel | 10 m Retractable Reel |
| 17 | Fog Cannon Range | ≤6 m |
| 18 | Charging System | All-Aluminium Intelligent Smart Charger |
| 19 | Reversing Camera System | 7.2-inch HD Screen + HD Camera |
| 20 | Tyre Specification | 145/70R12 |
| 21 | Body Material | Electrophoresis Metal Frame with Spray Coating |
| 22 | Brake System | Hydraulic Double Disc Brake |
| 23 | Steering System | Ride-On Steering Wheel |
| 24 | Operation Mode | One-Key Auto Start |
| 25 | Warning Light | 12V Integrated Warning Light |
| 26 | Electrical Control | Imported Intelligent Self-Diagnostic System |
| 27 | Vehicle Weight | 1500 kg |
Key Outstanding Features

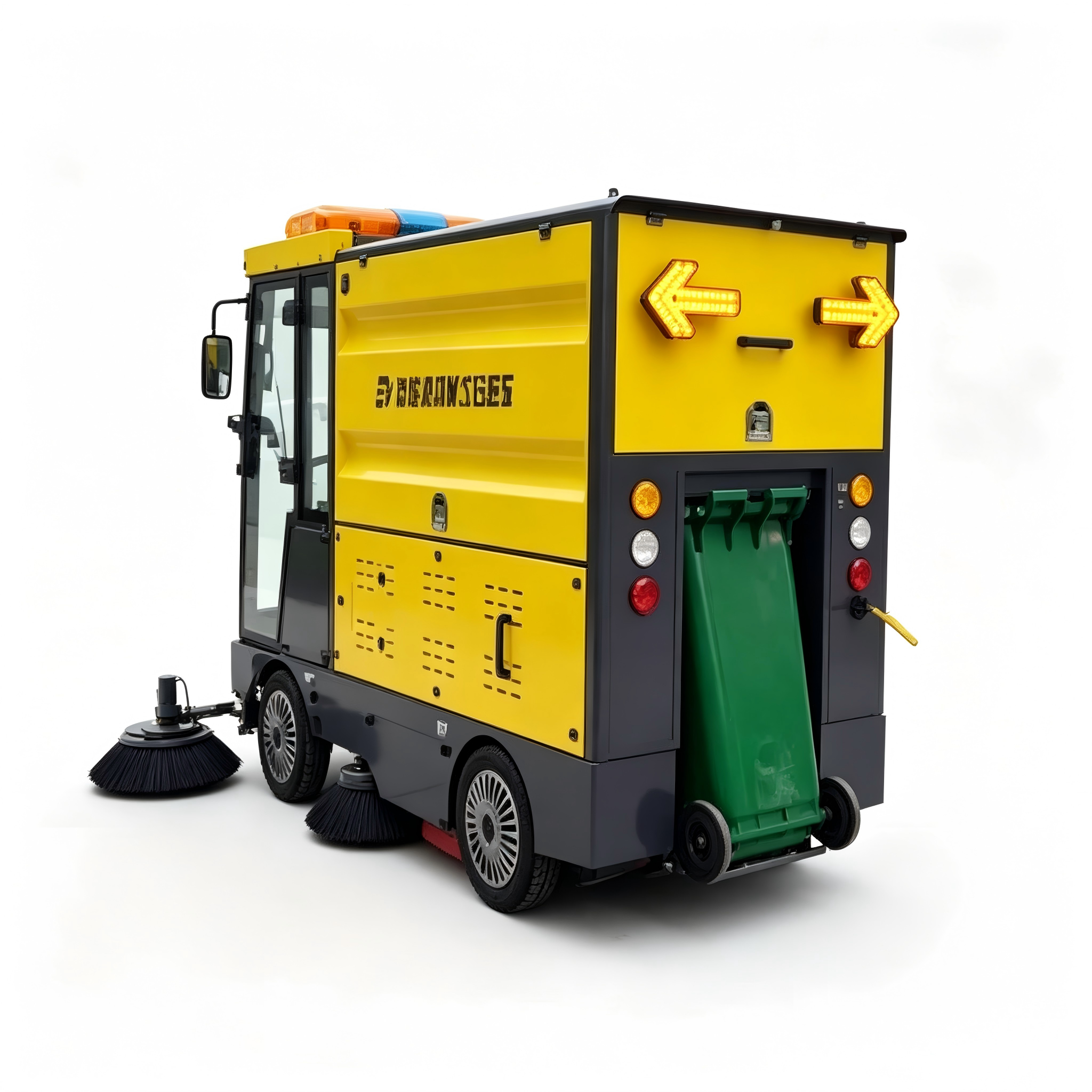

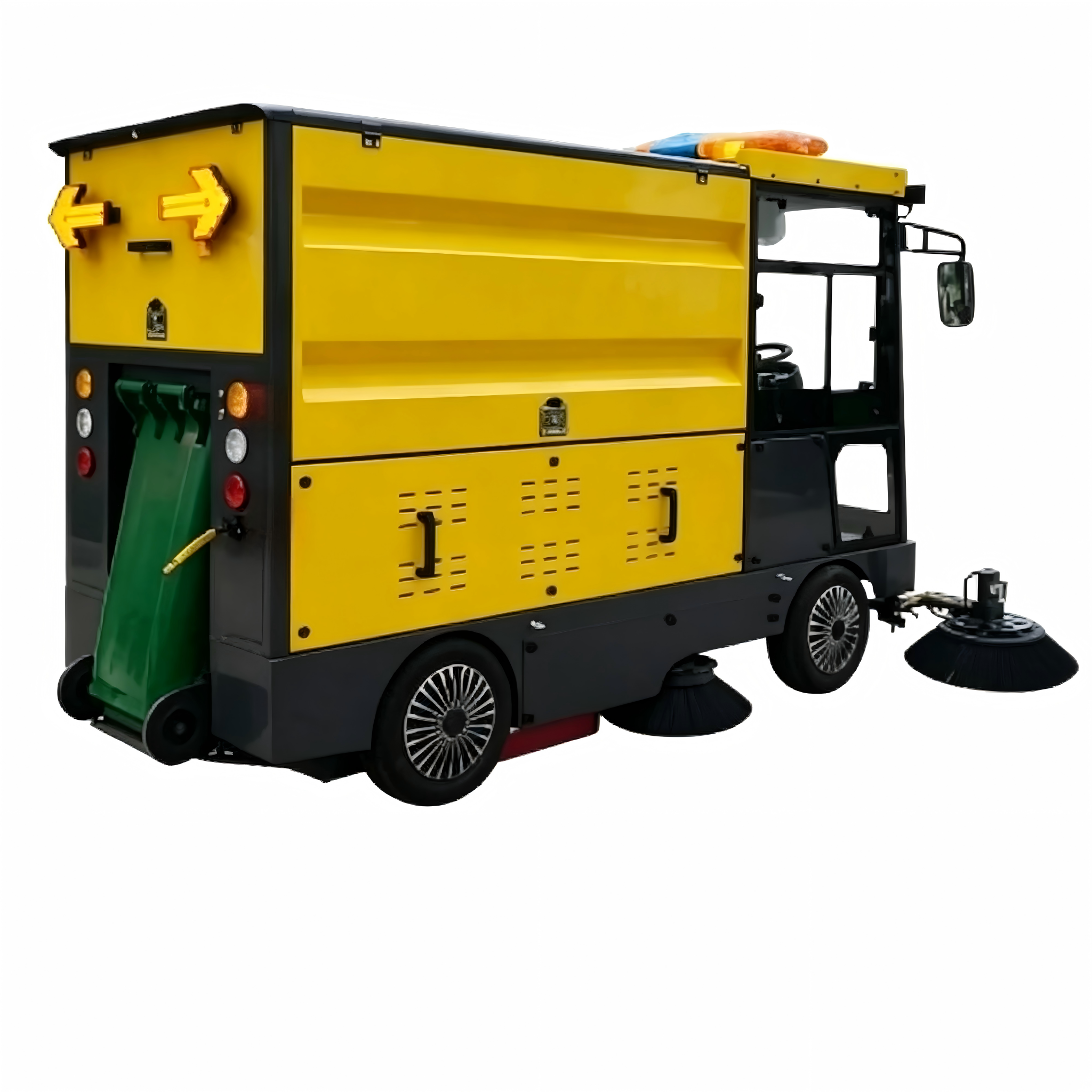

- Integrated 240 L Standard Back-Bucket System: The defining feature of the ZCB2500 — a fully-enclosed, standard-specification 240 L waste bucket mounted at the rear of the machine stores all collected debris for clean, off-site disposal. Ideal for urban areas, residential zones, and scenic locations where on-site dumping is prohibited or impractical.
- 2450 mm Wide Sweeping Coverage: A powerful 5-brush system (800mm main roller + two 650mm front side brushes + two 500mm rear side brushes) covers up to 18,000 m² per hour, achieving complete kerb-to-kerb sweeping in a single pass on standard two-lane roads.
- 500 L Industry-Largest Water Tank: The biggest water tank in our product lineup ensures all-day spray dust suppression and wet sweeping without a single refill stop — critical for extended urban municipal routes.
- 48V / 300Ah High-Capacity Lithium Battery: Delivers 4–6 hours of non-stop heavy-duty operation per charge with zero emissions and near-silent running — ideal for early morning operations in residential areas.
- 7.2-Inch HD Reversing Camera: Full HD rear-view display ensures safe reversing manoeuvres in narrow streets, alleys, and pedestrian zones, protecting both the operator and bystanders.
- 6 m Fog Cannon Dust Suppression: Forward-mounted fog cannon saturates airborne dust ahead of all brush contact, maintaining a dust-free sweeping environment even on dry, windy days.
- 10 m High-Pressure Water Reel (1500W): On-board high-pressure system for targeted spot-washing of drains, kerb edges, and road furniture without repositioning the vehicle.
- Hill-Hold Drive System (3000W): Anti-rollback hill-hold function ensures safe stopping and controlled ascent/descent on gradients up to 20% — essential for hilly urban streets and ramp access roads.
Application Scenarios
- Urban residential back streets and community roads
- Municipal parks, scenic areas, and pedestrian zones
- Hospital complexes, school campuses, and government facilities
- Large property management estates and gated communities
- Urban squares, commercial streets, and shopping precincts
- High-speed rail stations and airport landside areas
- Industrial park internal roads and logistics hub yards
