Product Overview

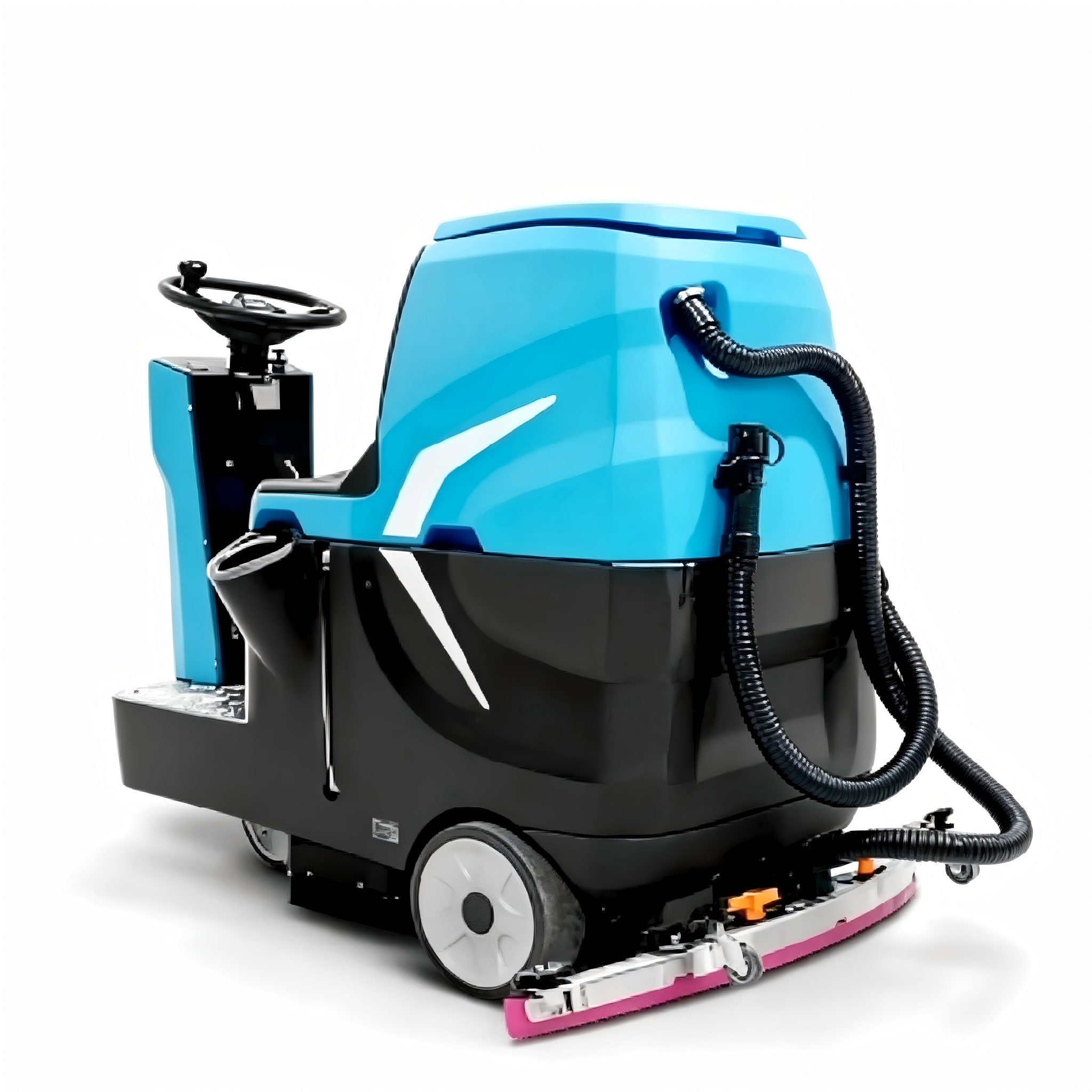

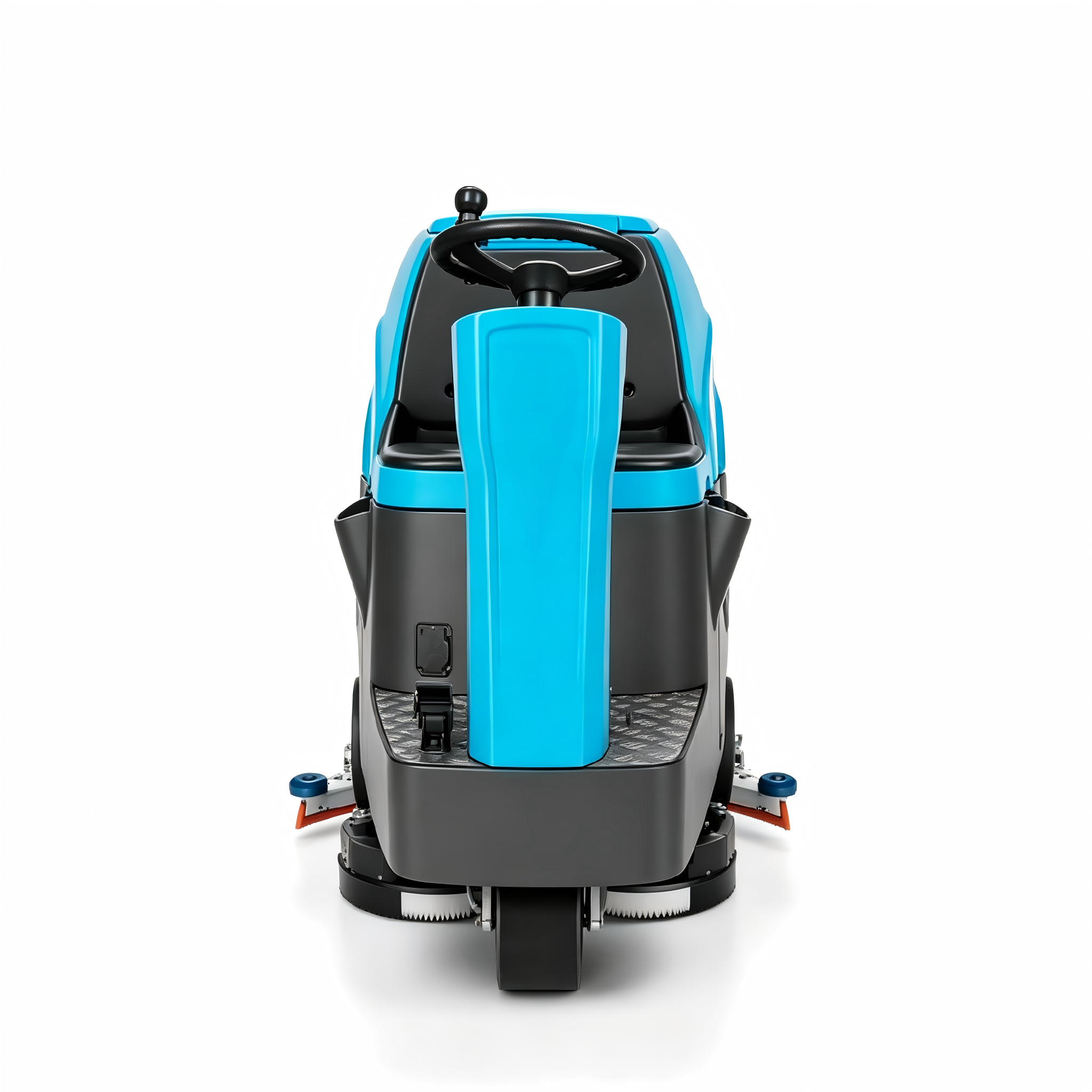

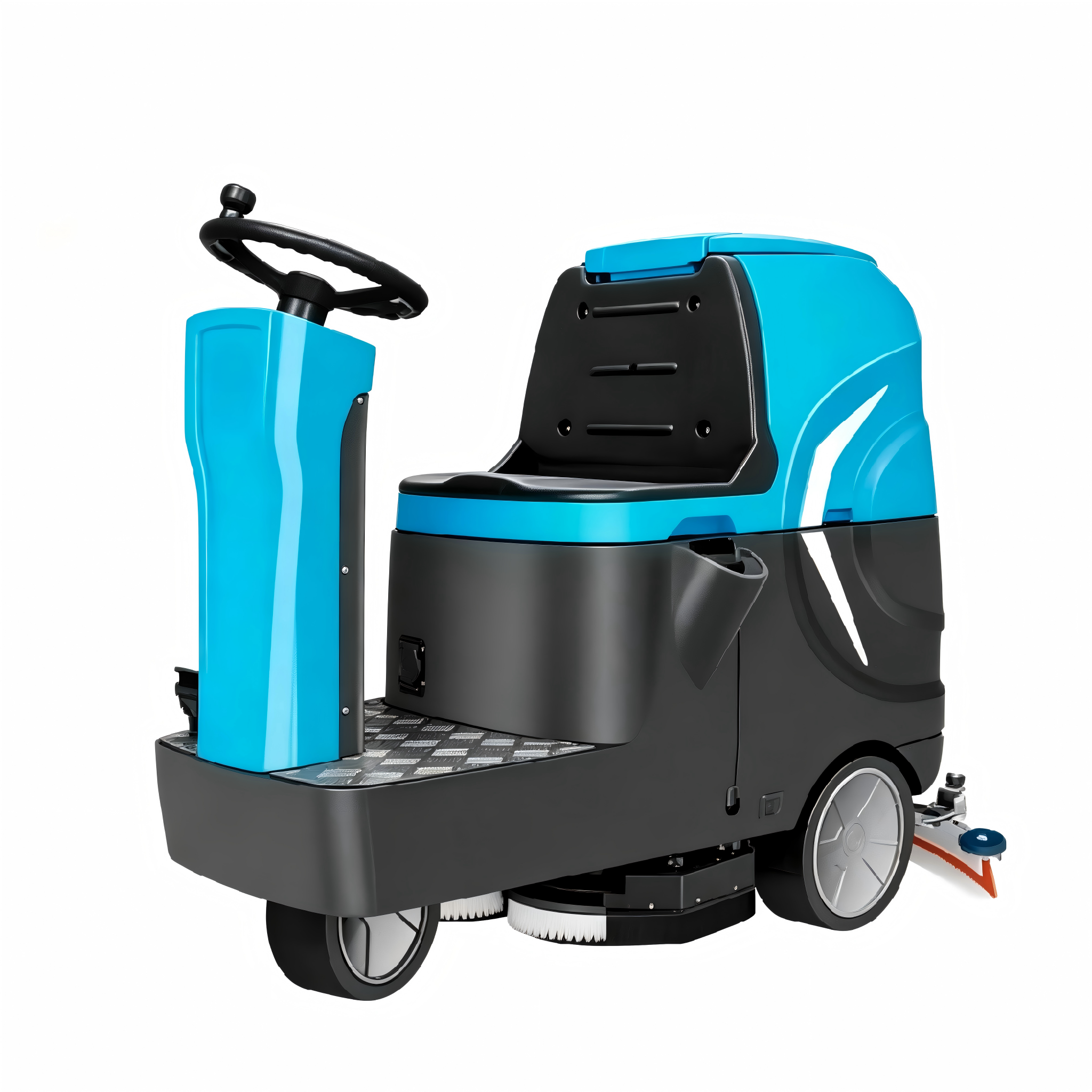

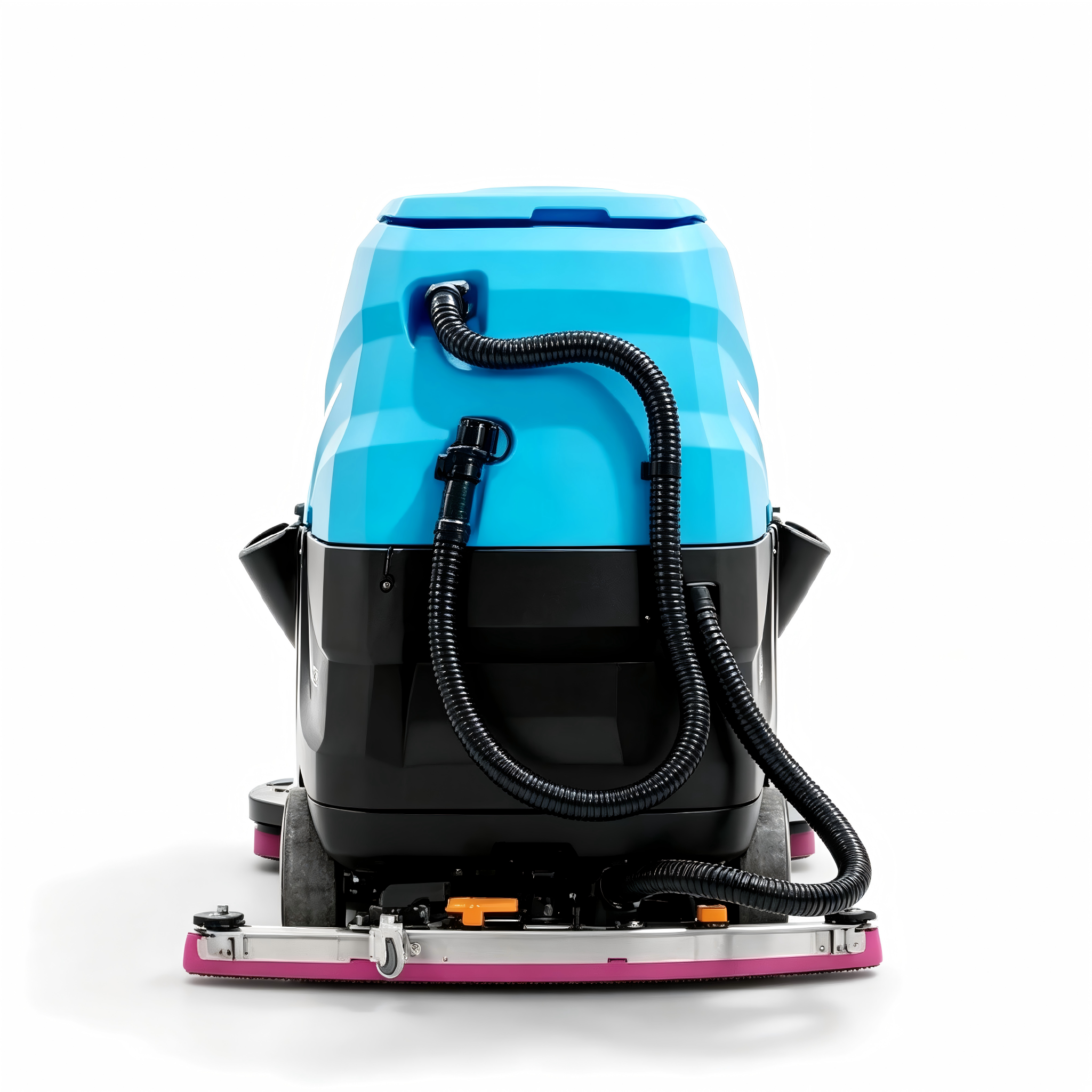

The JM71 Double-Disc Ride-On Floor Scrubber is specified for environments where cleaning quality is non-negotiable. Three imported components define its performance advantage: US-manufactured scrubbing discs that maintain consistent pressure across the full disc face, Minuteman West squeegee rubber for streak-free water recovery, and a UK-imported PG motor controller that delivers smooth, precise speed control and robust overload protection. The automatic squeegee lift on reverse and machine stop protects the squeegee from damage and ensures complete water recovery at the end of every pass — a critical feature for maintaining a slip-free floor in commercial areas.
Technical Specification
| No. | Parameter | Value |
|---|---|---|
| 1 | Model | JM71 |
| 2 | Battery | 24V / 100Ah × 2 (Lithium Option Available) |
| 3 | Disc Motor Power | 380 W × 2 |
| 4 | Vacuum Motor Power | 550 W |
| 5 | Clean Water Tank | 80 L |
| 6 | Dirty Water Tank | 85 L |
| 7 | Disc Diameter | 700 mm (Double Disc) |
| 8 | Squeegee Width | 1000 mm |
| 9 | Cleaning Efficiency | 3000–5000 m²/h |
| 10 | Working Time | 3 Hours |
| 11 | Machine Weight | 300 kg |
| 12 | Dimensions (L×W×H) | 1370 × 1000 × 1130 mm |
| 13 | Motor Controller | UK Imported PG Controller |
| 14 | Scrubbing Disc | US Imported |
| 15 | Squeegee Blade | Minuteman West |
| 16 | Brush Type | Double Disc |
Key Features
- US Imported Scrubbing Discs: Premium American-manufactured pads deliver consistent cleaning pressure across the full disc face — more effective on tile grout, textured floors, and heavily soiled surfaces.
- Minuteman West Squeegee Blades: Industry-standard water recovery blades leave floors virtually streak-free and dry within seconds of the machine passing.
- UK Imported PG Motor Controller: Proven British-engineered controller provides smooth progressive speed control, regenerative braking, and comprehensive motor protection.
- Auto Squeegee Lift on Reverse & Stop: Squeegee automatically lifts when reversing or stopping — prevents blade damage and ensures clean floor transitions.
- Aviation Anti-Explosion Charging Socket: Airtight, spark-proof charging connector meets the highest industrial safety standards for battery charging in commercial buildings.
- Aluminium Alloy Charger: Lightweight, heat-dissipating aluminium charger extends battery life through controlled, low-heat charge cycles.
Application Scenarios
- Large logistics warehouses and fulfilment centres
- Industrial manufacturing floors
- Airport terminals and cargo areas
- Large supermarkets and hypermarkets
- Hospital main corridors and operating area approaches
- Convention centres and exhibition halls
